OWO Trackers

A SlimeVr tracking builder & innovator.

New In house Custom NRF PCB in coming soon

OWO Tracker Specs

none of my trackers use "wires or cables" as i do not use extentions on my builds. every point is a dedicated tracker

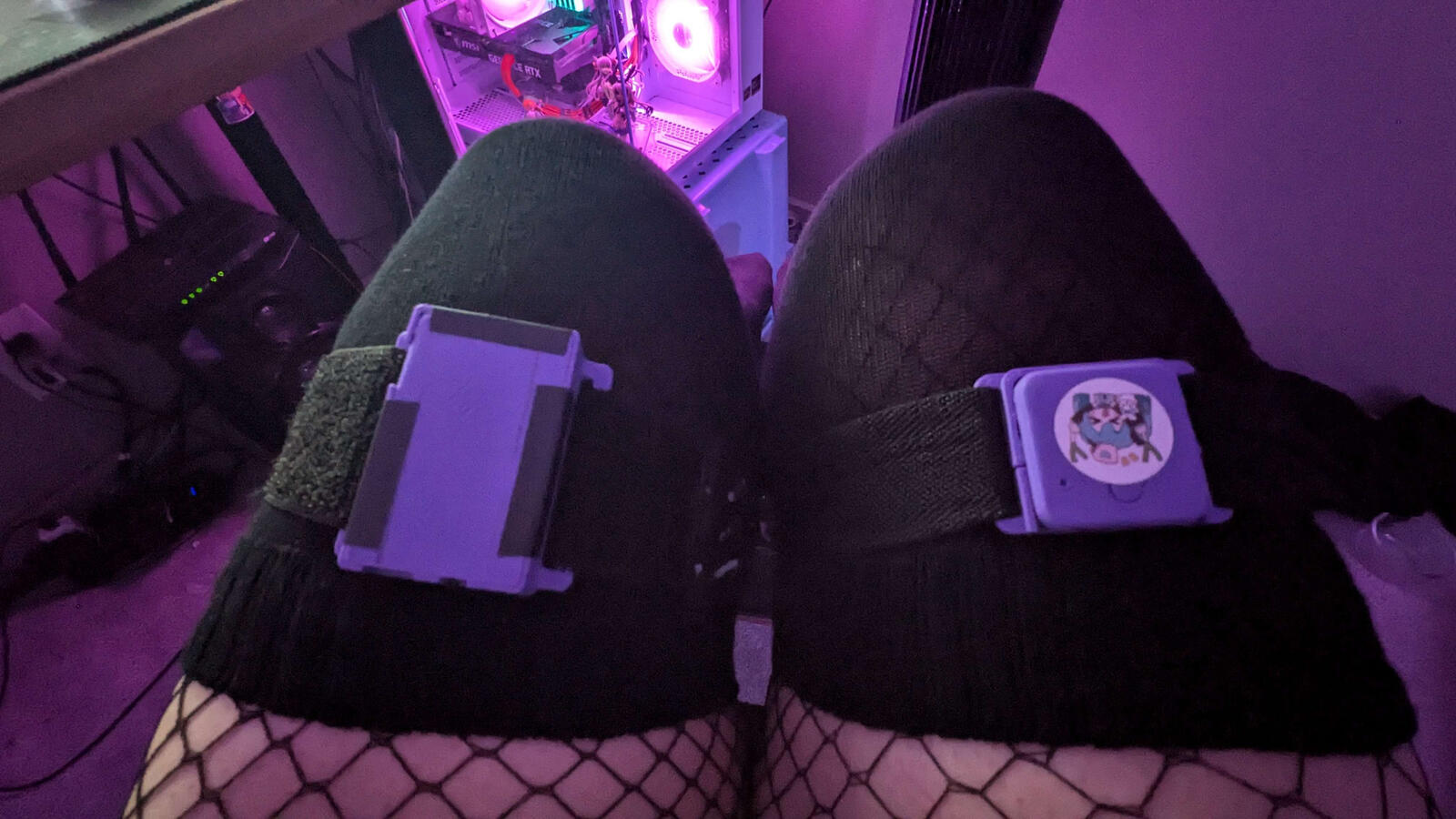

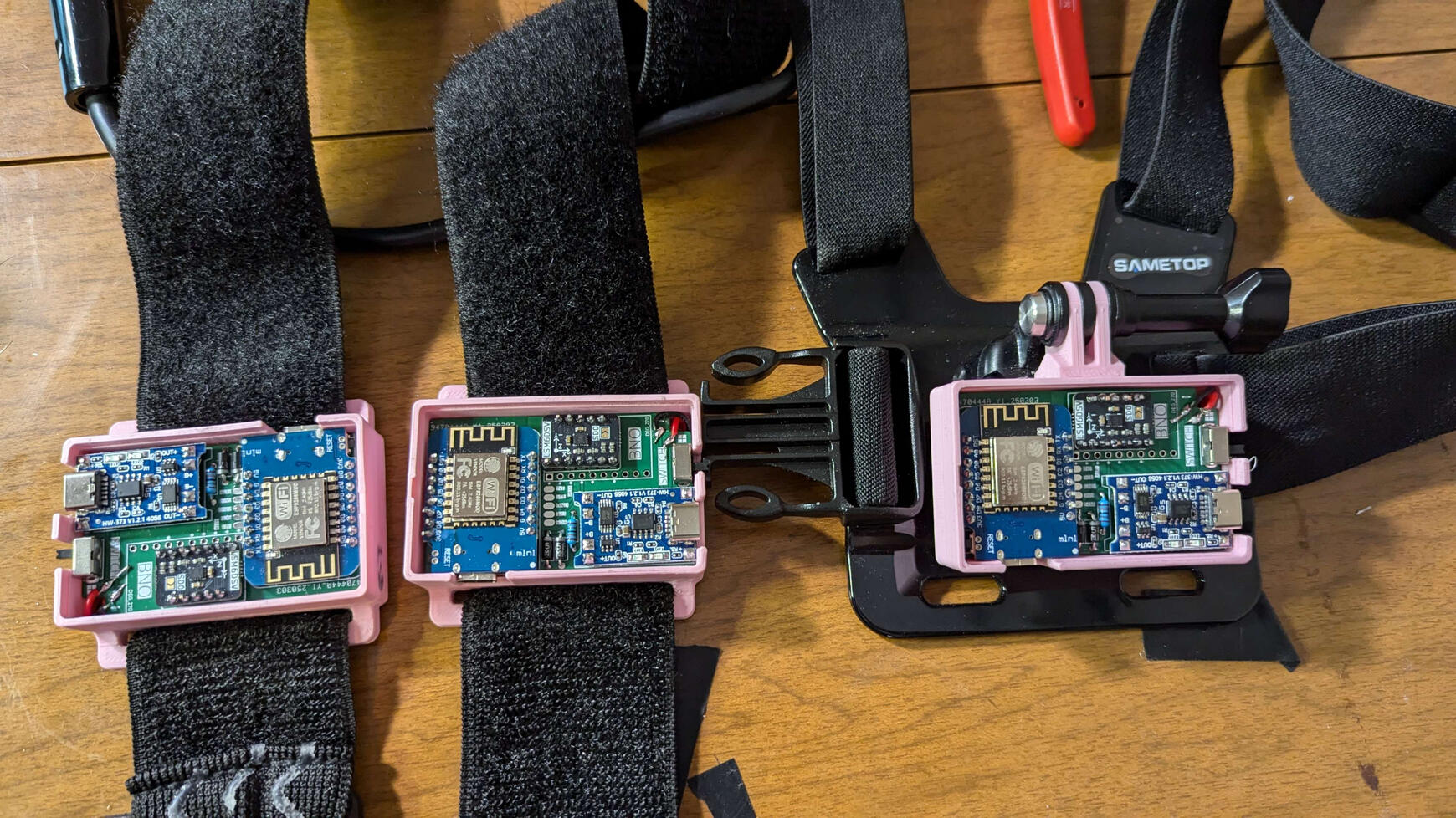

Esp Based Slime Trackers

  • 1200mah Li-po battery 523450

  • fully quest compatible using an android phone to run the server

  • imu----------- icm-45686, lsm6dsv or lsm6dsr( pricing based on icm-45686)

  • micro controler----ESP8266 D1 mini

  • Charging board-----------TP4056

  • Carrier PCB designed by shine bright (in house pcb in the works.

Features

Starting at $260 plus shipping and handling

  • No Base stations needed

  • Battery life----------10-12 hours

  • Charging time----------2 -1/2 hours

  • Stand alone compatible ( using your android device to run slime server)

  • uses the shine bright meow carrier(cheesecake builds coming soon)

SlimeVR Is open source. that means that all the specs and requirements to build them is open knowledge and information can be found here at the link below.

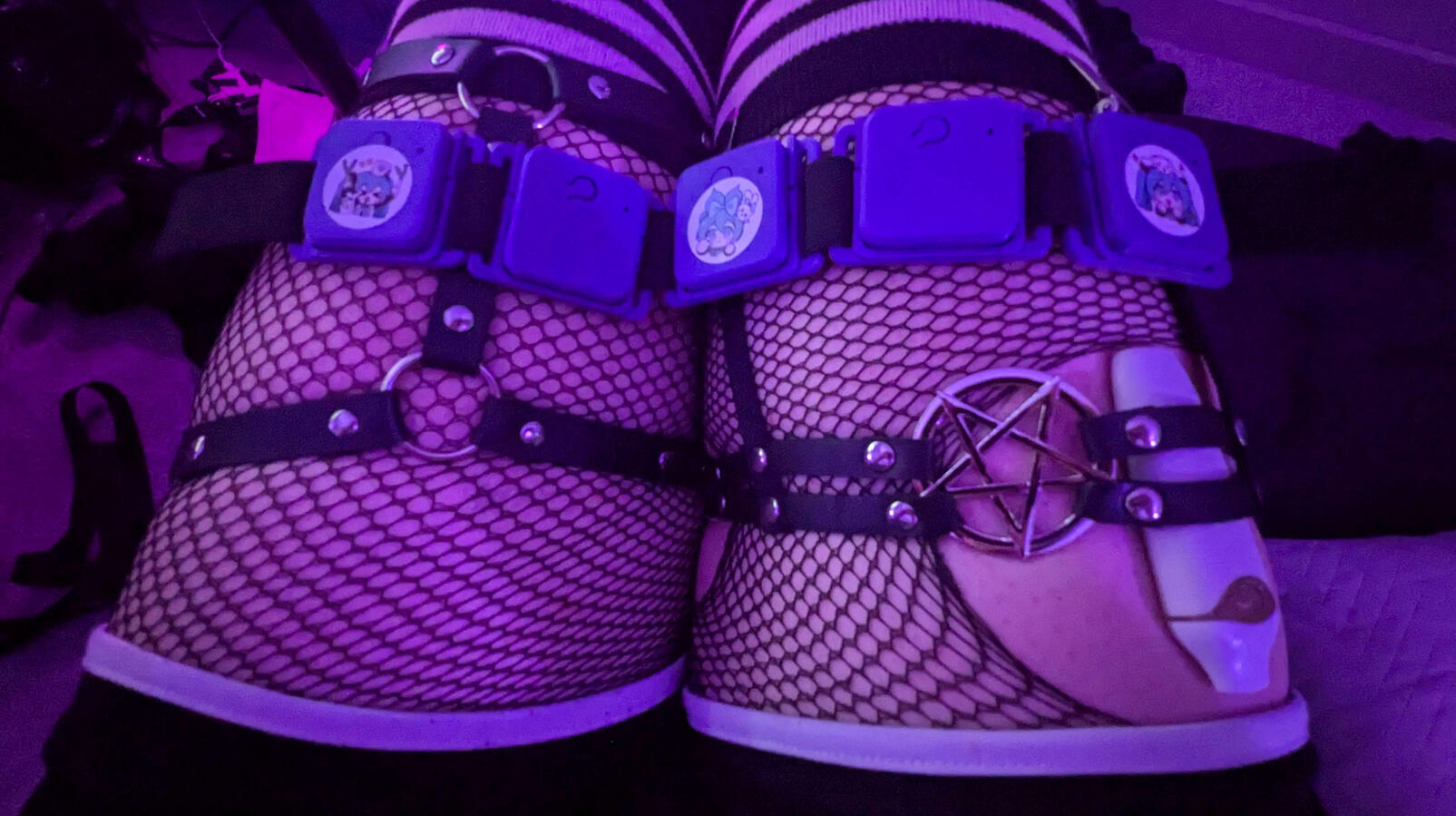

Nrf Based Slime Trackers

  • 401230 3.7V 110 mAh Battery

  • Small form factor 37mmx38mmx7mm

  • imu----------- icm-45686, lsm6dsv or lsm6dsr( pricing based on icm-45686)

  • micro controler----------- Supermini NRF52840

  • Usb Receiver-------- Nordic NRF52840-DONGLE

  • case design by ibis

Features

Starting at $260 plus shipping and handling

  • No Base Stations needed

  • Battery life--------30-50 hours

  • Charging time------2-1/2 hours

  • Perfect for sleeping in vr

  • quest compatible if you have a pc to run server on(can be a basic computer in your room with your play space)

  • uses ibis tracker case(in house case in the works)

These Trackers use a "wireless" dongle (NRF RECEIVER )

  • Around 10meter range

  • No wires

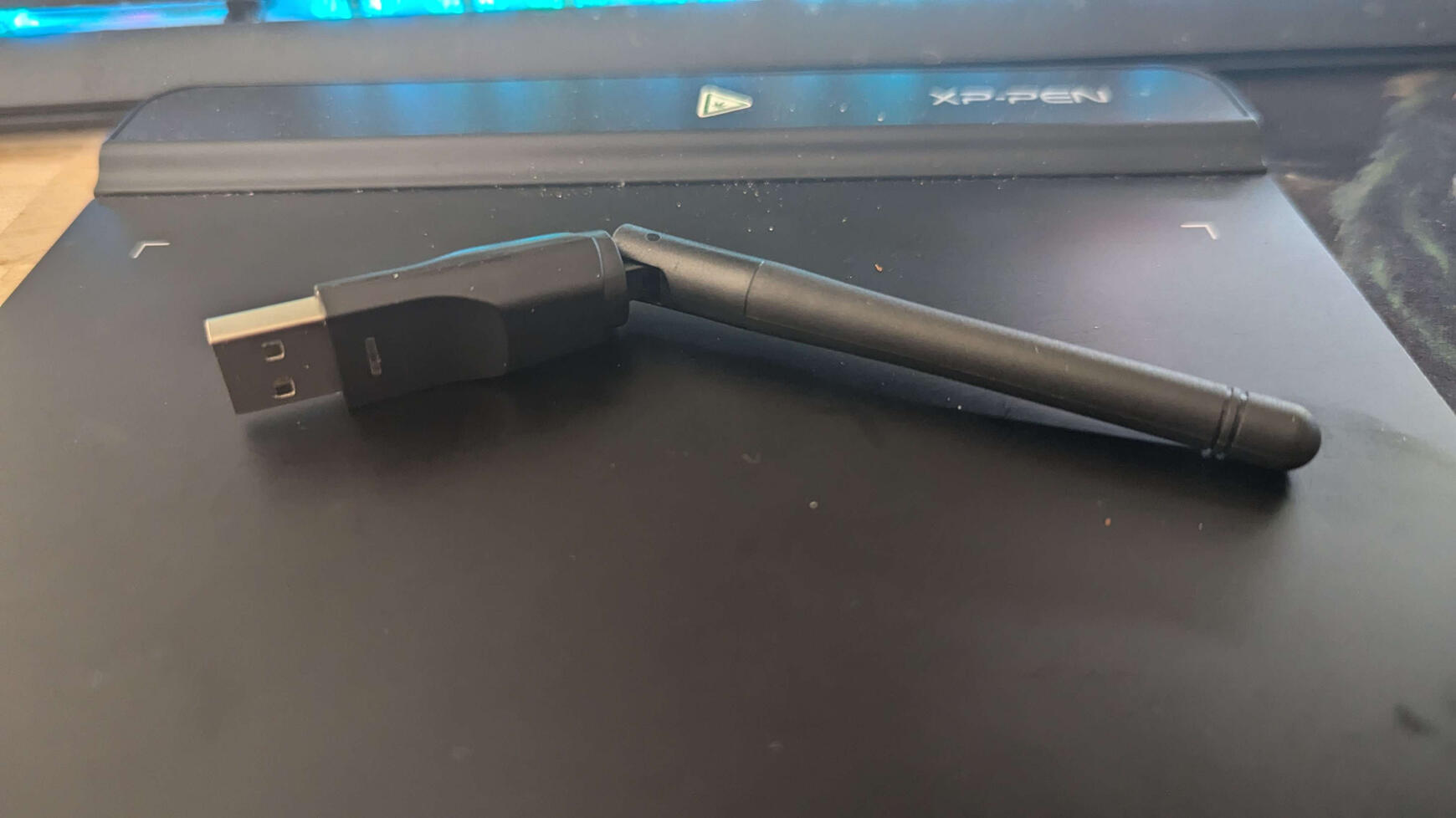

  • Upgraded NRF receiver with a bigger antenna can be made for up charge

Things that effect shipping and build time.

Shipping times are around 2 to 3 months depending on the tracker version you get. this is depending on the lipo battery availabilityNRF SLIMES can be shipped sooner for a fee as the batteries are more expensive 7-8 dollar each give or take on amazon but i can get them MUCH sooner.

Build time factors

  • li-po availability and shipping times.(can be less with upcharge)

  • imu stock(imu stock links below)

Imu fabricators site links below restock every few months or so. last drop was 30th of may.

SLIMEVR IMU MODULE SUPPLIER UPDATE

SlimeVR is going to be taking over the sale of ICM-45686 modules!
I have recently been hired by SlimeVR!!!, and I'll soon be moving countries to join them at the office. This means that it no longer makes sense for me to keep running my IMU business anymore, so...
KOUNOLAB will be shutting down once the remaining stock of LSM6DSR+QMC6309 modules sells out.
SlimeVR will take over the sales of the ICM-45686+QMC6309 module, and you can expect them to be listed on their store in around 1 to 1.5 months.
My friend @Deyta (Moth, IMUwuDD, yes+2) will take over the sales of the slightly less popular LSM6DSR+QMC6309 module, you can check his thread for more details and an expected timeline.
The KOUNOLAB store page will be updated with redirects to these new sales channels, plus some contact info in case you need support with past orders.
The IMU module will be going open-source!! More on that soon.
A copy of this announcement will also be sent out via email to subscribers.Thank you, to everyone, for helping me get this far <3
